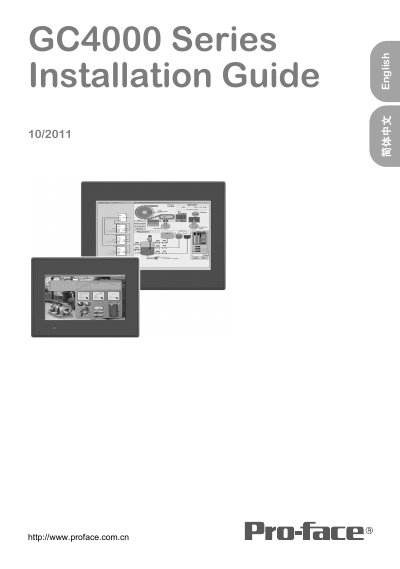

Installation guide with safety notices, handling instructions, parts identification, panel‑cut dimensions and wiring steps for Pro-face GC4000 series panels.
This document provides the information needed to safely install and commission Pro-face GC4000 series HMI panels. It includes safety warnings, handling procedures for the LCD panel, and a checklist of parts supplied with each panel.
The guide details panel‑cut dimensions, required installation fasteners, power‑supply wiring, communication interfaces (USB, RS‑232, RS‑485/RS‑422), and step‑by‑step procedures for connecting power cables, USB connectors, and grounding to ensure reliable operation. This manual is written in Chinese.
| Panel thickness (GC4501W) | 255 mm ± 1.8 mm |
|---|---|
| Installation fasteners (GC4501W) | 6 |
The panels must be powered with a 24 Vdc DC power source only.
Six installation fasteners are required for the GC4501W panel.
