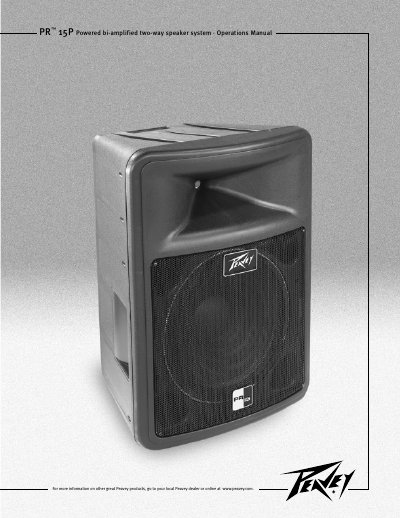

This document is the user manual for PR™ 15P Powered bi-amplified two-way speaker system.
This manual covers essential safety information for the PR 15P, including warnings about dangerous voltage, fuse protection, and proper grounding. It also details power requirements, the built‑in 5 A ABC‑type fast‑blow fuse, and recommended installation practices such as mounting, suspension, and cable management.
The guide explains the speaker’s input options, volume controls, and mic/line switching, as well as recommended signal sources and mixing procedures. Operational steps for powering on the unit, adjusting gain, and troubleshooting clipping are provided, along with typical applications like sound reinforcement, PA, and stage monitoring.
| Woofer peak power | 200 W |
|---|---|
| Tweeter peak power | 70 W |
| Woofer continuous RMS power | 150 W |
| Tweeter continuous RMS power | 50 W |
| Woofer size | 15 inches |
| Compression driver model | RX 14 |
| Fuse type | ABC‑type fast‑blow 5 A |
| Power cord | 8‑foot IEC AC cord |
Use the mic/line pad (switch 6); when the pad is set to “in” the input is line‑level, and when set to “out” it provides mic‑level with an additional 30 dB gain.
First turn on all upstream equipment, then set the PR 15P volume control fully counter‑clockwise and switch the unit ON before raising mixer levels.
