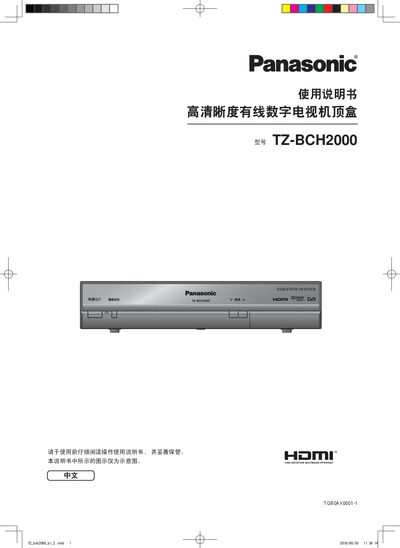

The Panasonic TZ-BCH2000 set-top box user manual provides safety instructions, setup steps, and technical specifications.
This manual covers safety precautions, proper handling, and basic operation of the Panasonic TZ‑BCH2000 set‑top box. It explains how to install the device, connect antennas, HDMI, audio, and USB cables, and use the remote control functions.
Technical specifications such as input voltage, power consumption, dimensions, weight, and connector types are listed, along with regulatory compliance information and disposal guidelines.
| Input Voltage | AC 90 V‑250 V, 50/60 Hz |
|---|---|
| Power Consumption | 8 W (standby mode) |
| Dimensions | 280 mm × 227 mm × 59 mm |
| Weight | 1.3 kg |
| HDMI Output | HDMI connector |
| USB Port | USB (service use) |
| Audio Output Level | -2.0 dBu |
It operates on AC 90 V‑250 V at 50 Hz or 60 Hz.
The standby power consumption is 8 W.
