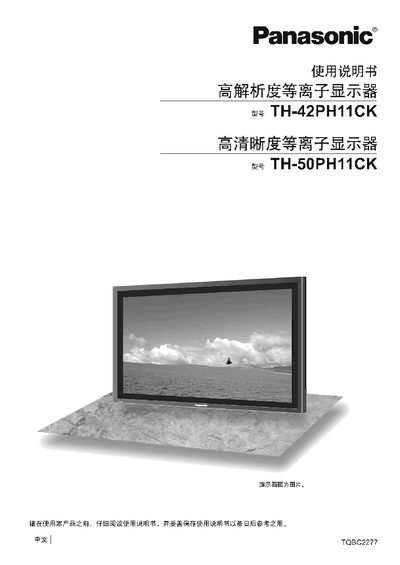

This manual covers important safety precautions for the TH‑42PH11CK and TH‑50PH11CK high‑resolution displays, including keeping the unit away from water, fire, and strong magnetic fields, and ensuring proper grounding before installation.
It also details the recommended installation procedure, lists all supplied accessories, provides full technical specifications such as power requirements, screen size, resolution and supported video inputs, and includes a troubleshooting section for common issues. This manual is written in Chinese.
| Power Supply | 220 V, 50/60 Hz |
|---|---|
| Normal Power Consumption | 345 W (42"), 425 W (50") |
| Standby Power Consumption | 1.8 W |
| Screen Size | 42" (16:9) / 50" (16:9) |
| Resolution | 1024 × 768 (786,432 pixels) |
The display operates on 220 V AC at 50 Hz or 60 Hz.
In normal use the TH‑42PH11CK consumes 345 W and the TH‑50PH11CK consumes 425 W.
Do not expose the display to water, moisture, fire, or strong magnetic fields, and ensure the grounding pin is securely connected.
Supported inputs include VGA, SVGA, XGA, SXGA, UXGA, BNC, HDMI, and Mini‑D‑SUB (15‑pin) connectors.
