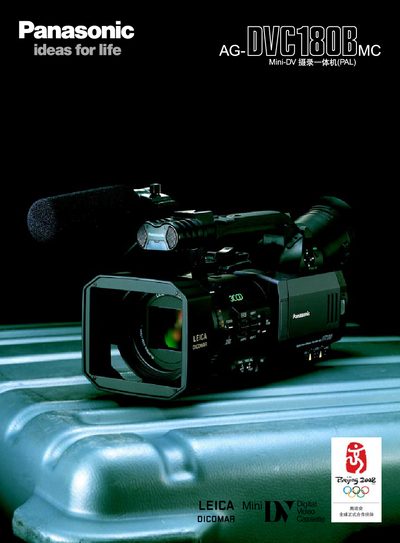

The AG-DVC180B is a DV camcorder released by Panasonic. It uses a 1/3-inch 470-megapixel 3CCD, supports 25P, 50i formats, and has an integrated Leica DicomarTM lens and OIS optical stabilization system. It also supports RGB Cine-Like and CINE-LIKE-D image styles.
This manual covers the basic operation of the Panasonic AG-DVC180B miniDV camcorder, including recording modes, Cine‑Like settings, and menu navigation. It explains how to set up the camera for PAL or NTSC, adjust capture parameters, and use the built‑in features such as auto‑focus and exposure control.
Technical information is provided for power requirements, audio/video outputs, dimensions, and other specifications. The document also lists connector pinouts for IEEE‑1394, RCA, XLR, and other interfaces, helping users integrate the camcorder into a professional workflow.
| Power Input | 110/120/220/240V AC, 50/60Hz |
|---|---|
| Dimensions | 70 x 44.5 x 116 mm |
| LCD Size | 3.5" |
| Video Output (RCA) | RCA x 2 (CH1, CH2) |
| Audio Output (XLR) | XLR (3 #5) x 2 (CH1, CH2) |
| Frequency Response | 13.5 MHz (Y), 6.75 MHz (PB/PR) |
The camcorder accepts 110‑240 V AC at 50/60 Hz and consumes about 18 W of power.
