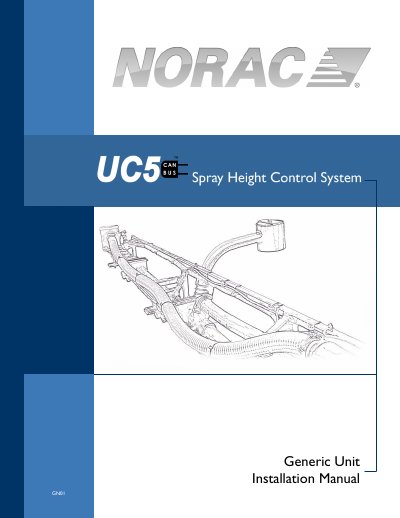

This manual provides installation instructions for the NORAC UC5 Spray Height Control System, covering sensor setup, module connection, and hydraulic plumbing.
The document serves as a generic unit installation guide for the NORAC UC5 Spray Height Control System. It details the system layout, lists kit parts including controllers and sensors, and outlines pre-installation checklists. The guide covers specific procedures for installing ultrasonic and roll sensors, connecting modules via CANbus, and setting up hydraulic plumbing for both single and double-acting systems.
| Supply Voltage (rated) | 12VDC |
|---|---|
| Supply Current (rated) | 5A |
| Hydraulic Pressure (maximum) | 3300 psi |
| Baud Rate | 250 kbps |
| Clock Frequency (maximum) | 96 MHz |
| Solenoid Valve PWM Frequency | 300 Hz |
| Ultrasonic Sensor Transmit Frequency | 50 kHz |
| Operating Temperature Range | 0°C to 80°C |
The system is rated for a maximum hydraulic pressure of 3300 psi.
The system operates within a temperature range of 0°C to 80°C.
The system requires a rated supply voltage of 12VDC.
