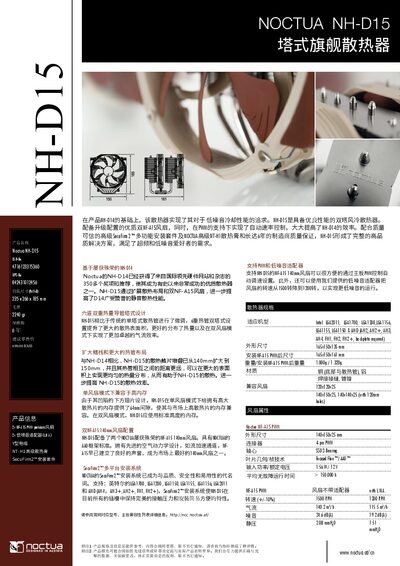

The Noctua NH-D15 product specification sheet details dimensions, fan configuration, compatibility, and warranty information for this dual‑tower CPU cooler.
The NH-D15 is a dual‑tower air cooler that uses two premium NF‑A15 PWM 140 mm fans to deliver high airflow with low noise. It features a six‑heat‑pipe design, expanded fin stacks, and the SecuFirm2™ multi‑platform mounting system for easy installation on a wide range of Intel and AMD sockets.
The specification sheet lists key dimensions, weight, fan performance figures, supported CPU sockets, and a six‑year warranty. It also includes details on optional low‑noise adapters, fan power consumption, and the included thermal paste and mounting accessories. This manual is written in Chinese.
| Package dimensions (HxWxD) | 235 x 266 x 185 mm |
|---|---|
| Gross weight | 2240 g |
| Fans included | 2 x NF‑A15 PWM premium |
| Fan power / voltage | 1.56 W / 12 V |
| Fan speed (max) | 1500 RPM |
| Fan speed (low‑noise mode) | 1200 RPM |
| Airflow | 140.2 m³/h |
| Noise level | 24.6 dB(A) |
| Static pressure | 2.08 mmH₂O |
| Fan dimensions | 120 x 120 x 25 mm |
| Supported CPU sockets | Intel LGA2011, LGA1700, LGA1200, LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM4, FM1, FM2+ |
| Mounting system | SecuFirm2™ multi‑platform installation system |
It supports Intel LGA2011, LGA1700, LGA1200, LGA1156, LGA1155, LGA1150 and AMD AM2, AM2+, AM3, AM4, FM1, FM2+ (backplate required).
The cooler includes two NF‑A15 PWM premium 140 mm fans, each rated at 1.56 W, 12 V, with a maximum speed of 1500 RPM (1200 RPM with low‑noise adapter), delivering 140.2 m³/h airflow and 24.6 dB(A) noise.
