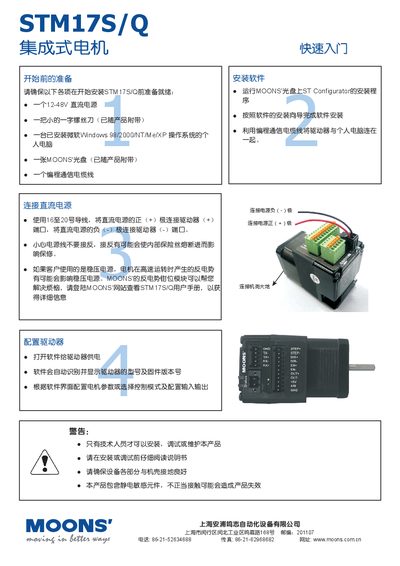

Moons STM17S/Q Integrated Motor Quick Start Guide

About this manual

This guide provides step‑by‑step instructions for technicians to install, configure, and operate the STM17S/Q integrated motor. It begins with safety warnings, required tools, and preparation items such as a 12‑48 V DC power supply, a screwdriver, and a PC running Windows 98/2000/NT/Me/XP.

The manual then details how to connect the power supply, ground the motor chassis, and attach the driver using the provided programming cable. It also explains driver configuration via the Moons software and offers a back‑EMF clamping module for use with regulated power supplies. This manual is written in Chinese.

What's inside

• Quick Start
• Warning
• Power Connection
• Grounding
• Driver Configuration
• Preparation

Specifications

Frequently asked questions

Who is allowed to install, debug, or maintain the STM17S/Q motor?

Only qualified technicians may install, debug, or maintain this product.

What can happen if the power wires are connected backwards?

Reversing the power wires may cause the internal fuse to blow, which can affect the warranty.

How can back‑EMF issues be mitigated when using a regulated power supply?

Moons provides a back‑EMF clamping module that can be used to solve this problem.
