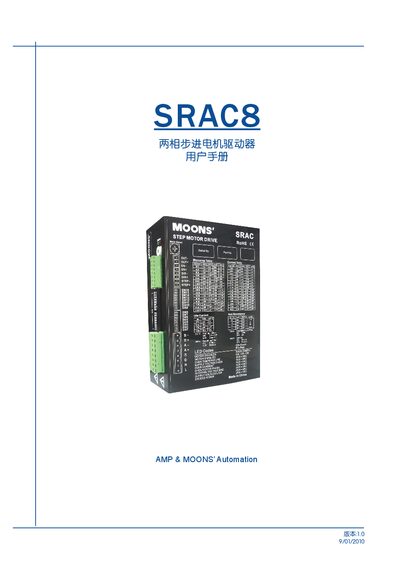

Chinese user manual for the MOONS SRAC8 two‑phase stepper motor driver, covering features, wiring, parameters and installation.
The SRAC8 is a two‑phase stepper motor driver designed with a PID current‑control algorithm, offering high speed, high torque, low noise and low vibration. It supports 16 microstepping options and 16 current settings, with built‑in over‑voltage, under‑voltage, phase‑current and bus‑current protection, and all I/O signals are optically isolated.
The manual provides a detailed introduction, functional block diagram, electrical and environmental specifications, wiring diagrams, driver operating parameters, motor selection guidance, mechanical installation instructions, and contact information for MOONS headquarters and regional offices. This manual is written in Chinese.
| Supply voltage (120V version) | 80‑138 VAC |
|---|---|
| Output peak current (120V version) | 0.4‑8 A |
| Input signal voltage | 4.0‑28 V |
| Operating temperature range | -20 °C to 40 °C |
| Maximum relative humidity | 90 % RH (no condensation) |
| Maximum vibration | 5.9 m/s² |
Connect the line (L) to the driver’s L terminal, the neutral (N) to the N terminal, and the ground to the driver’s ground terminal; a fuse not exceeding 10 A may be placed in series with the line.
A steady or flashing green LED shows normal operation, while a flashing red LED signals an alarm or error; different flash patterns identify specific fault codes.
Microstepping is selected with dip switches SW1‑SW4; sixteen step‑per values (e.g., 200, 400, 800 … 25000 steps/rev) can be chosen.
