Mitsubishi Electric GOT Graphical Operator Terminal Safety Precautions

Safety precautions for the Mitsubishi Electric GOT graphical operator terminal, covering design, installation, wiring, testing, and handling.

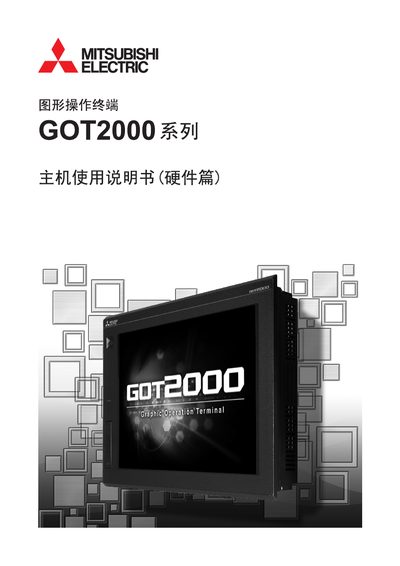

Mitsubishi Electric GOT Graphical Operator Terminal Safety Precautions - cover page
Brand
Mitsubishi Electric
Category
Other device
Document type
User Manual
Language
Chinese
Pages
152
File format
PDF
File size
5.9 MB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
3D620747C3EE2394D292C4F4ADBD4661
PDF
Mitsubishi Electric GOT Graphical Operator Terminal Safety Precautions PDF

About this manual

This manual provides safety warnings and design considerations for the Mitsubishi Electric Graphical Operator Terminal (GOT). It explains how to avoid hazardous situations caused by faults, improper installation, or misuse of the device.

The document also details installation, wiring, testing, and handling procedures, including IP address configuration, torque specifications for mounting, and proper disposal of batteries and equipment. This manual is written in Chinese.

What's inside

  • Design Considerations
  • Installation Considerations
  • Wiring Considerations
  • Test Operation Considerations
  • Touch Panel and Data Storage
  • Battery and Disposal
  • Transportation
  • System Configuration
  • Specifications

Specifications

Mounting bolt torque0.36 N·m – 0.48 N·m
Power input voltage (GT27)AC 100 V – 240 V
Power terminal torque0.5 N·m – 0.8 N·m

Frequently asked questions

What IP address must not be used for GOT or connected devices?

Do not set the GOT or any connected machine to the IP address 192.168.3.18.

What must be done before performing any wiring work?

All external power supplies in the system must be completely disconnected before starting wiring.
