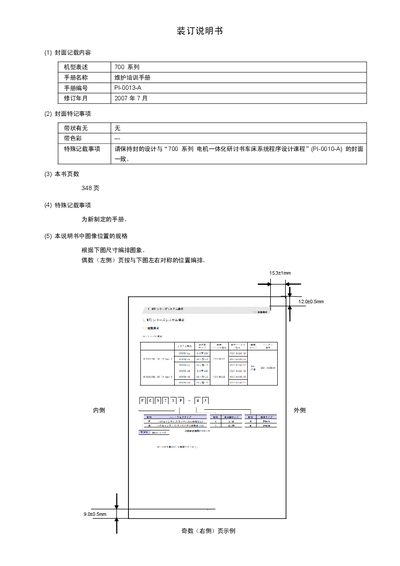

This Mitsubishi Electric CNC 700 Series maintenance training manual provides structure, components, operation, programming, and troubleshooting guidance.
The manual covers the CNC 700 series machine architecture, component descriptions, configuration, and operational procedures. It includes detailed sections on system setup, control units, and interface navigation to help technicians understand and operate the equipment.
Additional chapters address fault diagnosis, component replacement, servo system settings, and parameter adjustments. The document also provides reference part numbers and safety warnings, and directs users to Mitsubishi Electric service centers for further assistance. This manual is written in Chinese.
| Left side dimension | 15.3 mm |
|---|---|
| Right side dimension | 12.0 mm ±0.5 mm |
| Additional dimension | 9.0 mm ±0.5 mm |
It is intended to help users master knowledge and skills for the CNC 700 series, including operation, programming, and troubleshooting.
Users should contact the Mitsubishi Electric service center for support with component replacement.
