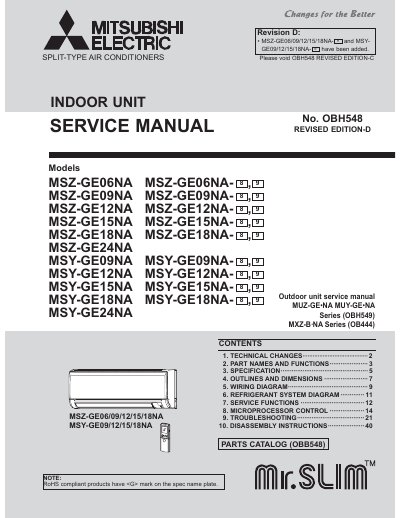

Service manual for Mitsubishi Electric MSZ‑GE and MSY‑GE indoor units, covering specifications, wiring, refrigerant diagrams, troubleshooting and disassembly.
This service manual provides detailed information for the Mitsubishi Electric MSZ‑GE and MSY‑GE series indoor units. It includes technical changes, part names and functions, specifications, dimensions, wiring and refrigerant system diagrams, service functions, micro‑processor control, troubleshooting procedures, and step‑by‑step disassembly instructions.
The document is organized into sections such as Technical Changes, Part Names and Functions, Specification, Outlines and Dimensions, Wiring Diagram, Refrigerant System Diagram, Service Functions, Microprocessor Control, Troubleshooting, and Disassembly Instructions, allowing technicians to quickly locate the needed information for repair and maintenance tasks.
| Power supply voltage | 208/230 V, 1 phase, 60 Hz |
|---|---|
| Fan motor full‑load current (F.L.A.) | 0.76 A |
| Cooling airflow (CFM) for MSZ‑GE06NA | 321 CFM |
| Control voltage | 12 – 24 VDC |
The indoor unit operates on a control voltage of 12 to 24 VDC supplied by a built‑in transformer.
