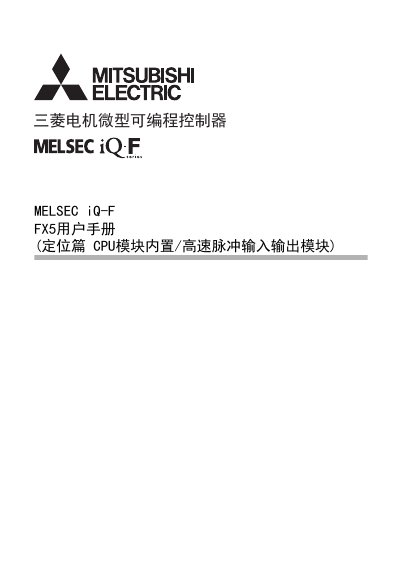

Chinese user manual that explains safety, wiring, setup, specifications and positioning functions for the MELSEC iQ-F FX5 PLC.
This manual provides detailed safety and wiring instructions, startup and maintenance guidelines, and a complete overview of the MELSEC iQ-F FX5 micro‑programmable controller. It also describes the positioning control features, parameters, commands and troubleshooting procedures.
The document includes reference tables for performance specifications, input/output limits, pulse‑output formats, and programming examples using GX Works3. Related manuals and warranty information are listed at the end. This manual is written in Chinese.
| Control axes (CPU module) | 4 axes |
|---|---|
| Positioning range | -2147483648 ~ +2147483647 (motor/mechanical/combined units) |
| Input signal voltage | DC24 V +20% / –15% |
| Ground wire size (CPU module) | ≥2 mm² |
Use a grounding wire of at least 2 mm² cross‑section.
The controller supports speeds up to 200 Kpps (depending on the selected unit system).
