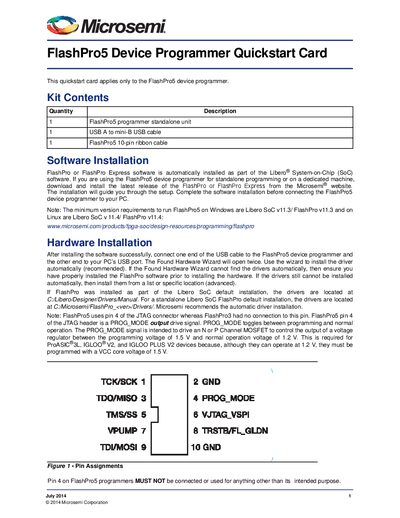

The Microsemi FlashPro5 quickstart card provides setup steps, kit contents, software and hardware installation, pin assignments, and troubleshooting tips.
This quickstart card is intended for users of the FlashPro5 device programmer. It lists the kit contents, explains how to install the FlashPro or FlashPro Express software, and shows how to connect the programmer to a PC via USB.
The guide also details the required JTAG pin configuration, voltage requirements, and common issues such as an unlit On LED. Documentation resources, technical support contacts, and regulatory compliance information are included.
| Programming voltage | 1.5 V |
|---|---|
| Normal operation voltage | 1.2 V |
| JTAG programming pin | Pin 4 (PROG_MODE) |
| Included USB cable | USB A to mini‑B cable |
| Ribbon cable | 10‑pin ribbon cable |
You need the FlashPro or FlashPro Express software, which is installed automatically as part of the Libero SoC software package.
The driver may not have installed correctly; reinstall or troubleshoot the driver installation as described in the FlashPro software guide.
Pin 4 of the JTAG connector provides the PROG_MODE output signal used for programming.
