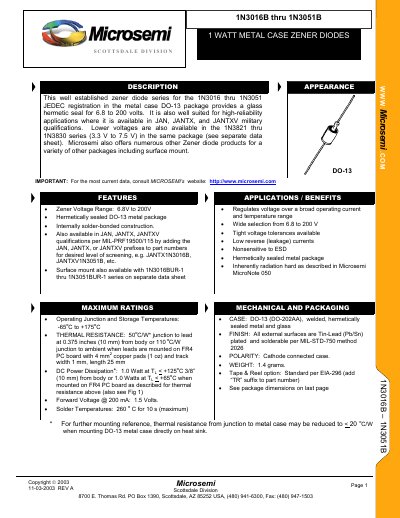

This datasheet provides the specifications of the 1N3016B to 1N3051B series of Zener diodes, including rated voltage, rated current, package type, appearance, etc.
The 1N3016B through 1N3051B series are 1‑watt metal‑case Zener diodes in a DO‑13 (DO‑202AA) hermetically sealed package. They operate over a wide voltage range of 6.8 V to 200 V and are qualified to military standards JAN, JANTX and JANTXV for high‑reliability applications.
Key specifications include a maximum power dissipation of 1 W at case temperatures below +125 °C, thermal resistance of 50 °C/W (junction‑to‑lead) or 110 °C/W (junction‑to‑ambient), and an operating temperature range from –65 °C to +175 °C. The diodes feature tight voltage tolerances, low reverse leakage, and are available in surface‑mount versions (1N3016BUR‑1 to 1N3051BUR‑1).
| Zener Voltage Range | 6.8 V to 200 V |
|---|---|
| Package Type | DO‑13 (DO‑202AA) metal case |
They cover a Zener voltage range from 6.8 V up to 200 V.
Yes, they are offered with JAN, JANTX, and JANTXV qualifications.
They are housed in a DO‑13 (DO‑202AA) welded, hermetically sealed metal case.
