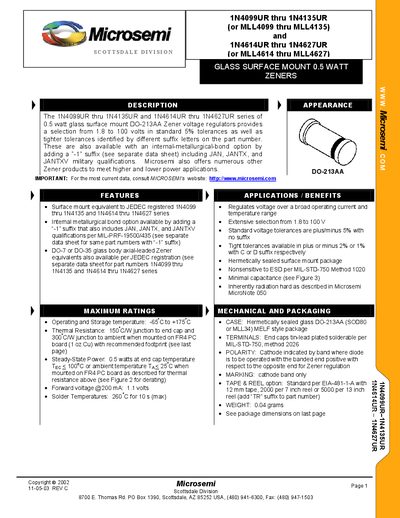

The document describes the features and characteristics of 0.5 watt glass surface mount DO-213AA Zener voltage regulators in the 1N4099UR to 1N4135UR and 1N4614UR to 1N4627UR series. These regulators offer a selection of 1.8 to 100 volts with standard 5% tolerances and tighter tolerances identified by different suffix letters. They are also available with an internal-metallurgical-bond option, including JAN, JANTX, and JANTXV military qualifications. Microsemi also offers other Zener products for higher and lower power applications.
The 1N4099UR‑1N4135UR and 1N4614UR‑1N4627UR series are 0.5 W glass surface‑mount Zener voltage regulators in a DO‑213AA (SOD80) MELF style package. They provide a selection from 1.8 V to 100 V with standard ±5 % tolerances and tighter ±2 % or ±1 % options using C or D suffixes.
Key specifications include a steady‑state power dissipation of 0.5 W, operating temperature range of 65 °C to +175 °C, thermal resistance of 150 °C·W⁻¹ junction‑to‑end‑cap, forward voltage of 1.1 V at 200 mA, and a soldering temperature limit of 260 °C for 10 s. The hermetically sealed glass case weighs 0.04 g and is available on tape‑and‑reel.
| Power Dissipation | 0.5 W |
|---|---|
| Operating Temperature Range | 65 °C to +175 °C |
| Thermal Resistance | 150 °C·W⁻¹ (junction to end cap) |
| Forward Voltage @200 mA | 1.1 V |
| Solder Temperature (max) | 260 °C for 10 s |
| Package Type | Hermetically sealed glass DO‑213AA (SOD80) MELF |
| Weight | 0.04 g |
| Voltage Range | 1.8 V to 100 V |
| Standard Voltage Tolerance | ±5 % |
| Tight Tolerance Options | ±2 % (C suffix) or ±1 % (D suffix) |
Each device is rated for a steady‑state power dissipation of 0.5 W.
They operate from 65 °C up to +175 °C for both storage and operation.
They are housed in a hermetically sealed glass DO‑213AA (SOD80) MELF package.
Suffix C provides ±2 % tolerance and suffix D provides ±1 % tolerance.
