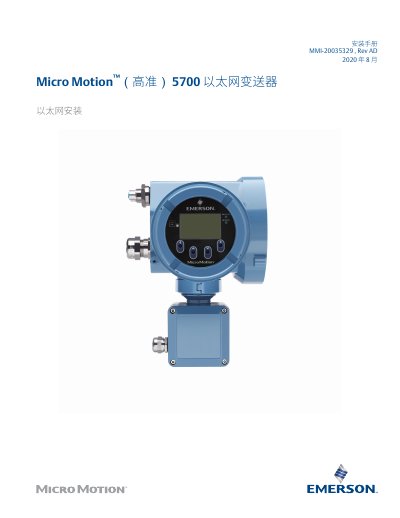

Micro Motion 5700 Ethernet Transmitter Installation Manual

This manual provides installation instructions, wiring diagrams, and setup procedures for the Micro Motion 5700 Ethernet Transmitter.

Brand: Micro Motion
Document type: Installation Guide
Language: Chinese
Pages: 54
File format: PDF
File size: 8.4 MB
Published: 17 October, 2026
Updated: 17 October, 2026
Model: 5700
MD5 checksum: BDFCA48395DFE3A46244834C9F5375A3
PDF: Micro Motion 5700 Ethernet Transmitter Installation Manual PDF

About this manual

This document serves as an installation guide for the Micro Motion 5700 Ethernet Transmitter. It covers essential planning steps, safety information, and preparation requirements before beginning physical installation.

The manual details specific instructions for installing the transmitter in various configurations, including integrated and remote setups. It provides comprehensive guidance on wiring I/O channels, connecting power sources (AC/DC), and establishing Ethernet network connections within LAN environments. This manual is written in Chinese.

What's inside

Safety Information
Installation Preparation
Power Requirements
Ethernet Network Installation
Transmitter Mounting
Sensor Wiring
Channel I/O Connections
Power Connections
Printer Setup
Configuration Wizard

Specifications

AC Input Voltage Range	85 to 240 V AC
DC Input Voltage Range	18 to 100 V DC
Maximum Ethernet Cable Length	99.97 m
Max Sensor to Transmitter Cable (4-wire)	305 m

Frequently asked questions

What is the maximum cable length for a non-Ex certified sensor to transmitter connection?

The maximum length is 305 meters for a standard 4-wire installation.

Can the Micro Motion 5700 be connected to a WAN?

No, it must be connected via LAN (Local Area Network) rather than WAN.

What is the minimum short-term current required from the power source during startup?

The power source must provide at least 1.5 Amperes of short-term current.
