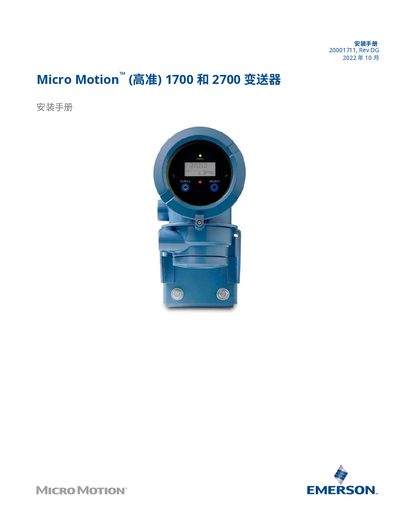

Installation manual for Micro Motion 1700 and 2700 transmitters, covering safety, wiring, grounding, and setup instructions.
This manual provides safety information, installation preparation steps, and detailed wiring instructions for the Micro Motion 1700 and 2700 transmitters. It includes guidance on sensor‑transmitter cable lengths, installation types, and environmental limits.
The document also covers power connections, grounding, analog and intrinsically safe I/O wiring, as well as FOUNDATION Fieldbus and PROFIBUS‑PA configurations for the 2700 model. Certification and compliance details for European, ATEX, IECEx, CSA, and FISCO/FNICO standards are included. This manual is written in Chinese.
| Operating temperature range | -40 °C to 60 °C |
|---|---|
| Storage temperature range | -40 °C to 60 °C |
| Relative humidity range | 5 % to 95 % RH |
| Enclosure protection rating | IP69K (NEMA 4X) |
| Maximum safe voltage (intrinsically safe) | < 30 VDC |
| Maximum safe current (intrinsically safe) | < 300 mA (4‑20 mA) / < 100 mA (frequency/discrete) |
The transmitter complies with all applicable European directives, has ATEX and IECEx documentation, and is certified by FISCO or FNICO for intrinsically safe use.
The devices operate from –40 °C to 60 °C and can be stored within the same temperature range.
The enclosure meets NEMA 4X standards with an IP rating of IP69K.
The open‑circuit voltage must be less than 30 VDC, and the open‑circuit current must be limited to less than 300 mA for 4‑20 mA outputs (or less than 100 mA for frequency/discrete outputs).
