This manual provides installation, operation, and maintenance instructions for Micro Motion D and DT Coriolis flow sensors.

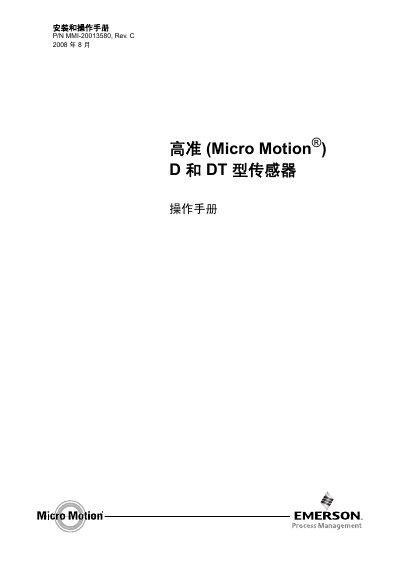

This document is the Operation Manual (P/N MMI-20013580) for Micro Motion D and DT type sensors. It serves as a guide for preparing, installing, wiring, and starting these Coriolis mass flow meters.
The manual covers five main steps: determining the correct location and orientation of the sensor on the process line, physical installation procedures including pipe penetration options, electrical wiring connections for various configurations (integrated or separate transmitters), and startup procedures including zeroing. It also includes troubleshooting guides for common issues such as zero drift, unstable flow readings, and inaccurate density or temperature values. This manual is written in Chinese.
You must provide 85-250VAC at 50/60 Hz.
Fluid must completely stop flowing through the sensor during zeroing.
