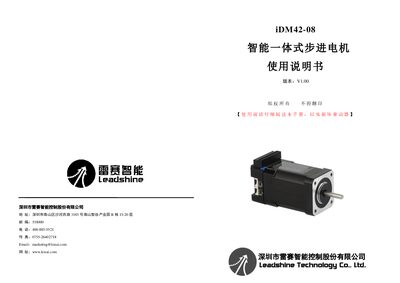

The Leisai iDM 42-08 smart integrated stepper motor user manual provides product overview, specs, wiring, dip‑switch settings, and warranty details.
The iDM 42-08 is a smart integrated stepper motor developed by Leisai, featuring a 32‑bit DSP controller, high pulse response up to 200 kHz, and built‑in over‑current and over‑voltage protection. It is intended for small‑to‑medium automation equipment such as medical devices, offering low noise, low heat, and easy wiring.
The manual covers a product overview, electrical/mechanical/environmental specifications, driver interface and wiring diagrams, dip‑switch configuration, typical wiring examples, and warranty terms. It also includes safety notes and recommended power‑supply settings. This manual is written in Chinese.
| Continuous output current | 0.3 – 1.5 A |
|---|---|
| Input voltage | 20 – 30 VDC |
| Logic input current | 7 – 16 mA |
| Pulse frequency | 0 – 200 kHz |
| Insulation resistance | 100 MΩ |
| Storage temperature range | 0 °C – 50 °C |
| Weight | ≈0.6 kg |
The recommended voltage is 24 VDC; using 36 VDC may cause an over‑voltage fault.
