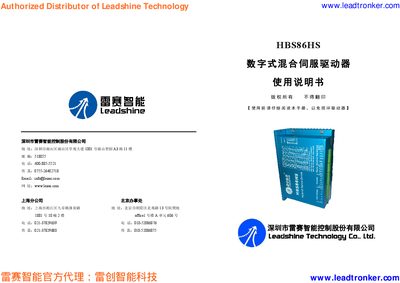

The Leisai HBS86HS digital hybrid servo drive user manual provides product overview, specifications, wiring, settings and warranty information.
This manual introduces the HBS86HS digital hybrid servo drive, its technical features, and typical applications such as CNC machines, laser plotters and other automation equipment. It covers electrical, mechanical and environmental specifications, connector definitions, wiring diagrams, DIP‑switch settings and parameter configuration.
Installation guidance, fault indication, cooling recommendations and warranty terms are also detailed, helping users install, operate and maintain the drive safely and efficiently. This manual is written in Chinese.
| Continuous Output Current | 0‑8 A |
|---|---|
| Input Voltage | 18‑80 VAC |
| Logic Input Current | 7‑20 mA |
| Pulse Frequency | 0‑200 kHz |
| Insulation Resistance | 500 MΩ |
| Encoder Supply Current | 50 mA |
| Operating Humidity | 40 % – 90 % RH |
| Weight | ≈570 g |
| Cooling Method | Natural cooling or external heat sink; optional fan |
The drive can deliver up to 8 A continuous output current.
One flash of the red LED signals an over‑current fault.
The drive can store the ten most recent fault codes.
Use natural cooling or attach an external heat sink; install the unit vertically for airflow and add a fan if needed.
