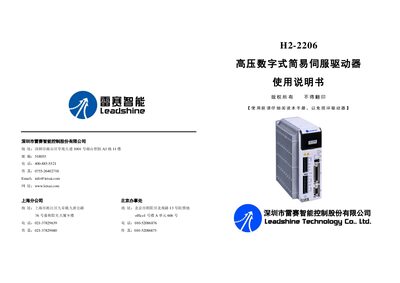

The Leisai H2-2206 manual explains installation, wiring, parameter settings and safety for the high‑voltage digital hybrid servo drive.
This manual provides a complete overview of the H2-2206 high‑voltage digital hybrid servo drive, including its technical features, application fields, and mechanical dimensions. It also details the recommended cooling methods and environmental limits for reliable operation.
The document walks the user through the driver’s electrical interfaces, wiring diagrams, parameter configuration via the front‑panel keys, and typical application wiring examples. Warranty terms and service procedures are included at the end. This manual is written in Chinese.
| Continuous Output Current | 0‑6 A |
|---|---|
| Input Power Voltage | 180‑230 VAC |
| Logic Input Current | 7‑20 mA |
| Pulse Frequency | 0‑300 kHz |
| Insulation Resistance | ≥100 MΩ |
| Relative Humidity Range | 40 % – 90 % RH |
| Weight | ≈1400 g |
| Cooling Method | Natural cooling or external heat sink |
The drive can deliver a continuous output current from 0 to 6 A.
Set parameter 35 (Pend output function) to 1 to select the brake output mode.
The drive accepts an AC input voltage of 180 V to 230 V.
