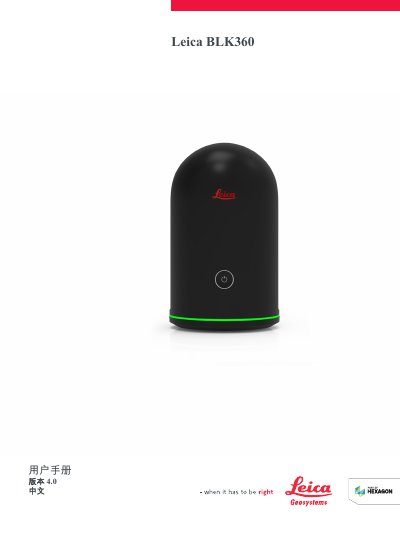

Leica Geosystems BLK360 3D Laser Scanner User Manual

This manual provides safety guidelines, installation instructions, and operating procedures for the Leica BLK360 3D laser scanner.

Brand: Leica Geosystems
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 6.6 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BC404AE9AAD7374521BBDC819EBB89A1
PDF: Leica Geosystems BLK360 3D Laser Scanner User Manual PDF

About this manual

This document is the User Manual for the Leica BLK360 3D laser scanner, Version 4.0. It serves as a critical guide for the safe operation, installation, and maintenance of the device. The manual outlines specific safety warnings regarding laser usage, battery handling, and electromagnetic compatibility to ensure user safety and equipment integrity. This manual is written in Chinese.

What's inside

Safety Guidelines
System Description
User Interface
Operation
Maintenance and Transport
Technical Data
Software License

Specifications

Wavelength	830 nm
Maximum Pulse Energy	8 nJ
Pulse Duration	4 ns
Pulse Repetition Frequency	1.44 MHz
Beam Divergence	0.4 mrad
Mirror Rotation	30 Hz
Base Rotation	2.5 mHz

Frequently asked questions

What is the laser classification of the BLK360?

The product is classified as a Class 1 laser product under IEC 60825-1 (2014-05).

Can the scanner be used in hazardous areas?

No, it is not suitable for use in environments with corrosive or explosive hazards.

Who is authorized to repair the product?

Only Leica Geosystems authorized service centers are authorized to repair the product.
