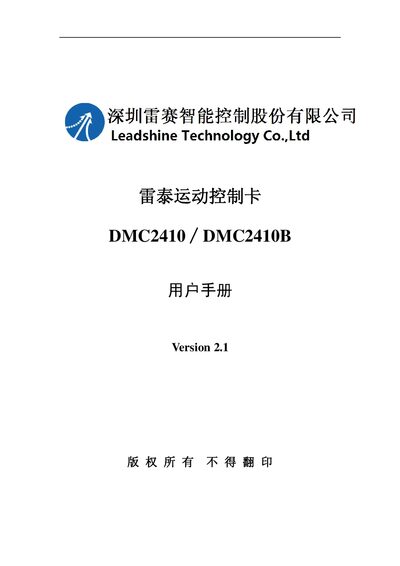

The Leadshine DMC2410/DMC2410B User Manual covers hardware overview, installation, driver setup, software usage, and development guidance.
The DMC2410/DMC2410B is a 4‑axis PCI motion‑control card that supports stepper or digital servo motors, encoder inputs, and various I/O signals. It provides hardware linear interpolation, position control, trapezoidal and S‑curve speed profiles, and a speed‑preview function for smooth multi‑segment motion.
The manual explains hardware dimensions and PCI‑V2.3 32‑bit half‑length form factor, details wiring and power requirements (24 V DC), guides driver installation, describes the Motion2410 software suite, and offers programming examples for Windows, Visual Basic, and Visual C++ environments. This manual is written in Chinese.
| PCI Form Factor | 32‑bit PCI half‑length card (PCI V2.3 compatible) |
|---|---|
| Number of Axes | 4 |
| Encoder Inputs | Supports up to 4 encoder signals |
| Power Supply | 24 V DC external supply |
The card requires a 24 V DC external power supply.
It can control up to four axes.
It is a 32‑bit PCI half‑length card compatible with the PCI V2.3 standard.
Yes, the DMC2410B version includes a speed‑preview feature for smoother motion.
