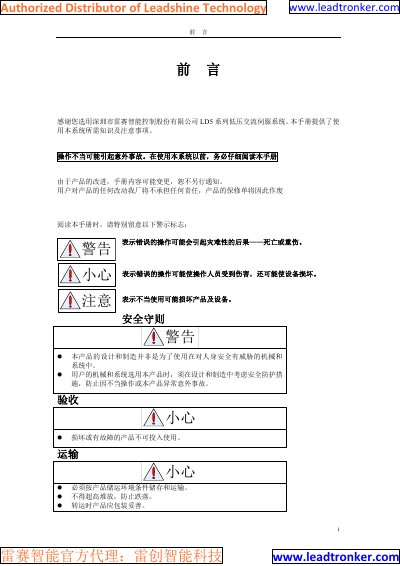

The Leadshine LD5 series low‑voltage AC servo system user manual provides safety, installation, wiring, parameter setup, and troubleshooting information.
This manual covers the complete lifecycle of the LD5 series low‑voltage AC servo system, from product overview and delivery inspection to detailed installation, wiring, and parameter configuration. It includes safety warnings, recommended handling procedures, and guidelines for proper system integration.
The document also provides operating instructions, alarm handling, display functions, power‑on procedures, technical specifications of the driver and motor, and ordering guidance for selecting the appropriate capacity and accessories. This manual is written in Chinese.
| Rated output power | 400W |
|---|---|
| Rated output current | 10A |
| Maximum output current | 30A |
| Main power supply | 24‑48V DC |
| Control method | IGBT SVPWM sinusoidal |
| Feedback type | 2500P/R incremental encoder (standard) |
| Input pulse frequency range | 0‑600 kHz |
| Speed bandwidth | 600 kHz |
It operates from a 24 V to 48 V DC power supply.
The driver is rated for 400 W of output power.
The maximum output current is 30 A.
A 2500 P/R incremental encoder is supplied as standard.
