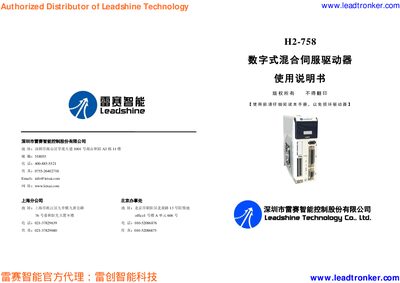

This document introduces the technical features and application areas of the H2-758 digital hybrid servo drive from Shenzhen Leadshine Intelligent Control Co., Ltd.
The H2-758 is a digital hybrid servo drive designed for high‑torque automation equipment. This manual introduces the product, its technical features, and typical application areas.
It covers electrical, mechanical and environmental specifications, detailed interface definitions, wiring diagrams, parameter configuration via the front panel, typical wiring examples, and warranty terms. Troubleshooting and fault codes are also included. This manual is written in Chinese.
| Continuous output current | 0‑8 A |
|---|---|
| Input voltage | 50‑80 VAC |
| Pulse frequency | up to 300 kHz |
| Weight | ≈ 1200 g |
| Humidity range | 40‑90 %RH |
The drive accepts an input voltage of 50 to 80 VAC.
It can store up to 10 of the latest fault codes in EEPROM.
Natural cooling or an external heat sink, with vertical installation for airflow, is recommended.
The maximum continuous output current is 8 A.
