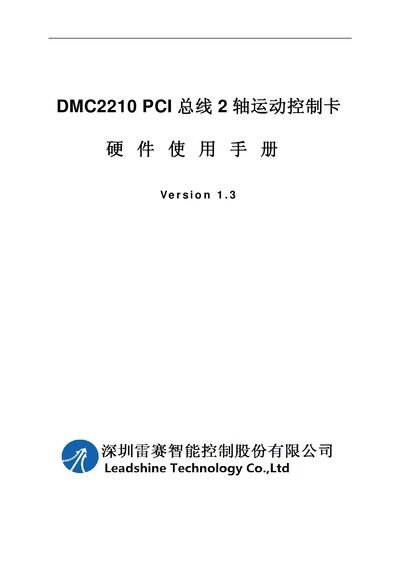

Hardware manual for the Leadshine DMC2210 PCI‑bus 2‑axis motion control card, covering features, setup, wiring and troubleshooting.
The DMC2210 is a PCI‑bus motion control card that can drive two stepper or digital servo axes. It provides high‑speed pulse output, encoder handling, and extensive I/O for industrial automation applications.
The manual describes the card’s hardware architecture, installation steps, pin definitions, connection methods, troubleshooting tips, EMI mitigation measures, and detailed technical specifications. This manual is written in Chinese.
| Number of controlled axes | 2 axes |
|---|---|
| Maximum pulse output frequency per axis | 9 MHz |
| Encoder input maximum frequency | 4 MHz |
| Digital I/O ports | 20 inputs, 20 outputs |
| Operating temperature range | 0 °C – 50 °C |
| Power supply (slot) | +5 V ±5 % up to 1100 mA |
The DMC2210 can control two axes.
Each axis can output pulses up to 9 MHz.
The card provides 20 digital inputs and 20 digital outputs.
