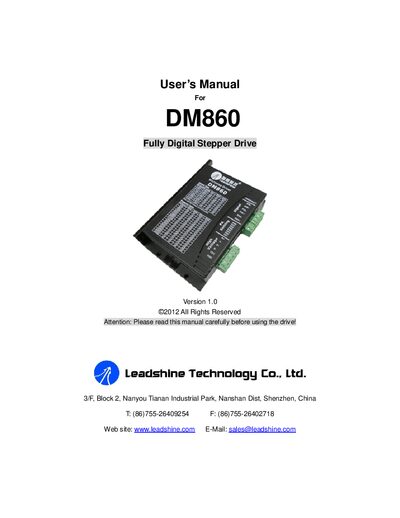

The Leadshine DM860 User Manual provides setup, wiring, and troubleshooting information for the fully digital stepper drive.
This manual introduces the DM860 fully digital stepper drive, its features, and typical applications such as X‑Y tables, engraving and laser cutting machines. It explains the driver’s anti‑resonance, motor auto‑identification, micro‑stepping options, and protection functions.
Detailed sections cover electrical and mechanical specifications, pin assignments for control and power connectors, motor connection methods for 4‑, 6‑ and 8‑lead motors, power‑supply selection, micro‑step resolution settings, wiring notes, sequence charts, and a comprehensive FAQ for troubleshooting common issues.
