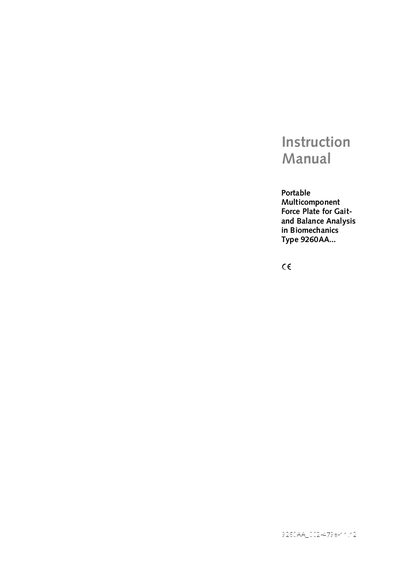

The Kistler 9260AA portable multicomponent force plate instruction manual provides installation, operation, maintenance procedures and technical specifications.
This manual describes the Kistler 9260AA portable multicomponent force plate used for gait and balance analysis. It covers safety information, product description, installation, operation, maintenance, troubleshooting and technical data.
The document also includes safety guidelines, recommended environmental conditions, warranty information and a declaration of conformity. Users are instructed to mount the plate on a proper foundation, connect earth, and follow weekly function checks to ensure reliable performance.
| Linearity | < ±0.5 % FSO |
|---|---|
| Hysteresis | < 0.5 % FSO |
| Crosstalk (Fx↔Fy) | < ±2.5 % |
| Operating temperature range | 10 °C … 50 °C |
| Degree of protection | IP52 |
Mount the force plate on its foundation following the instructions in Chapter 4 and connect it to earth using the provided potential equalization conductor.
The instrument can be operated between 10 °C and 50 °C.
A weekly function check is required, along with periodic recalibration and cleaning as described in the maintenance section.
