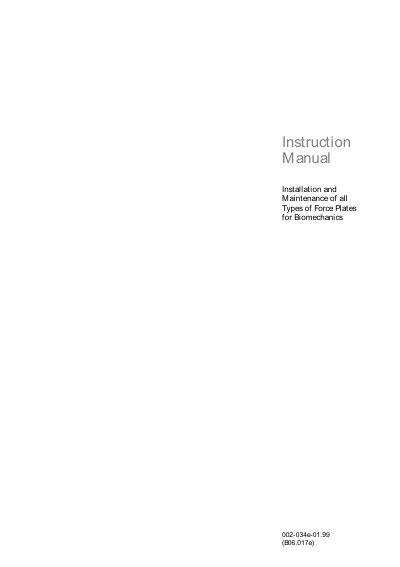

This manual provides installation, maintenance, calibration, and troubleshooting instructions for Kistler B06.017e-01.99 force plates.
The document outlines safety requirements and general information for handling Kistler force plates. Only qualified personnel should install, operate, or maintain the plates, and the instrument must be grounded using the Potential Equalization Conductor. Temperature, humidity, and vibration conditions are described to ensure reliable measurements.
Detailed procedures cover location selection, mounting methods (including concrete foundations and temporary outdoor foundations), cable handling, functional checks, calibration steps, and troubleshooting of common issues such as no signal or drift. Service equipment and recommended tools are listed, and warranty information is provided at the end.
| Force resolution | 10 mN |
|---|---|
| Force range | up to 20 kN |
| Grounding requirement | Potential Equalization Conductor |
| Temperature stability | Temperature must be kept reasonably constant |
Regular functional checks are recommended and described in section 7.1 of the manual.
A temporary foundation for outdoor use is described in section 3.1.4.
