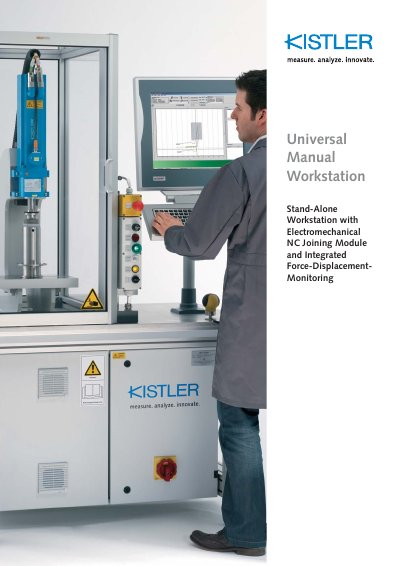

The Kistler Universal Manual Workstation with Electromechanical NC Joining Module offers stand‑alone joining solutions with integrated force‑displacement…
The Universal Manual Workstation is a stand‑alone system for joining processes, featuring a safety gate and integrated force monitoring. It is intended for development, sample construction and small‑batch production in industries such as watchmaking, automotive and engineering, and supports a wide range of applications including braking systems, steering components and gearboxes.
Technical data include a robust C‑frame or 4‑pillar design, max joining forces from 1 kN to 300 kN, traverse speeds up to 300 mm/s, and integrated piezoelectric force sensors with absolute encoder displacement measurement. The workstation is controlled by the NC Control Center (NCCC) running Windows 7 and offers flexible programming, data export and user management features.
| Maximum joining force | up to 300 kN |
|---|---|
| Maximum traverse speed | 300 mm/s |
| Overall dimensions (W×H×D) | 1000 mm × 850 mm × 800 mm |
| Total weight (1 kN model) | ≈ 230 kg |
| Force sensor type | piezoelectric |
| Displacement sensor resolution | 0.0005 mm |
The workstation can deliver up to 300 kN of joining force depending on the model.
The modules can operate at speeds up to 300 mm/s.
The workstation measures approximately 1000 mm × 850 mm × 800 mm (W×H×D).
The NC Control Center runs on Windows 7.
