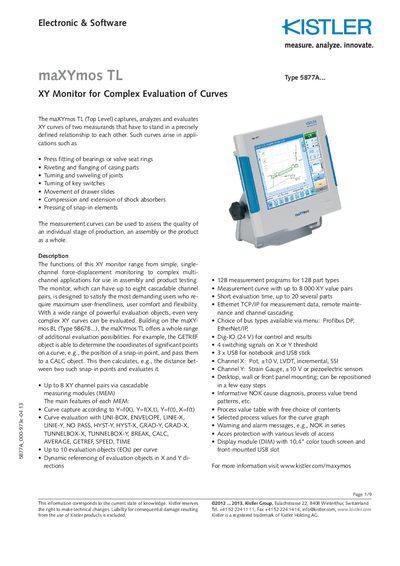

The Kistler 5877A maXYmos TL XY Monitor manual describes features, technical data, installation, and operation for complex curve evaluation.
The maXYmos TL XY Monitor captures, analyzes and evaluates XY curves of two measurands that must stay in a precisely defined relationship. It is used in applications such as press fitting, riveting, turning, and shock‑absorber testing. The device can handle up to eight cascaded XY channel pairs and provides a wide range of evaluation objects for detailed curve analysis.
The system consists of a Measuring and Evaluation Module (MEM) and a Display Module (DIM). The MEM works autonomously and can be operated via Ethernet, USB or fieldbus interfaces, while the DIM offers a 10.4" colour touch screen for local control. Various mounting options (desktop, wall, DIN‑rail) and a comprehensive set of accessories allow flexible integration into test rigs.
| Degree of protection | IP 40 |
|---|---|
| Operating temperature | 0 °C to 45 °C |
| Number of XY channel pairs | Up to 8 |
| Sampling rate | 20 kHz |
| Resolution per analog channel | 24 bit |
The system supports up to eight XY channel pairs via cascadable measuring modules.
The device operates from a 24 VDC supply, with an acceptable range of 18 V to 30 V.
