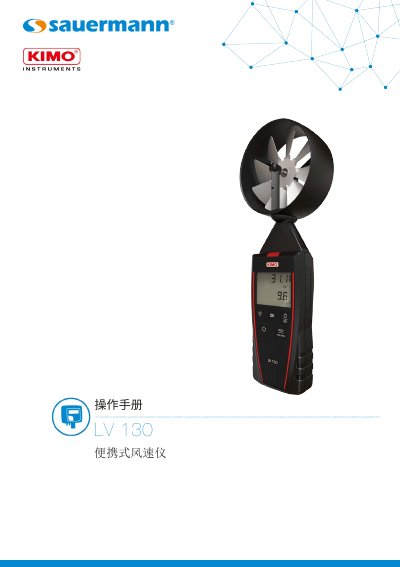

This manual provides operating instructions for the KIMO LV 130 portable anemometer, covering power settings, measurement modes (velocity and flow), unit…
The KIMO LV 130 is a high-precision portable instrument designed for measuring air or neutral gas velocity, volume, and temperature. The device features a liquid crystal display with five buttons for controlling functions such as power on/off, data hold, backlight, and menu navigation.
Users can configure the instrument to measure average wind speed, capture maximum/minimum values, or switch between velocity (m/s, fpm, km/h) and flow rate modes. The manual details how to set up circular or rectangular duct dimensions for accurate airflow calculation and explains battery replacement procedures. This manual is written in Chinese.
| Display | 4 lines, LCD, 50 x 36 mm |
|---|---|
| Protection Rating | IP54 |
| Probe Type | Vane anemometer, Ø 100 mm |
| Power Supply | 4 x 1.5 VDC AA batteries |
| Battery Life | 120 hours |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +80 °C |
| Weight | 390 g |
The device is prohibited for use in explosion-proof areas and for medical diagnosis.
Press the menu key until 'Mode' flashes, then press OK to select 'VELO' for velocity or 'FLOW' for flow.
The LV 130 supports m/s, fpm, and km/h for velocity measurements.
