This document introduces the features and characteristics of the TH110 temperature and humidity transmitter, including the material of the housing, protection level, display screen, cable connector, weight, etc. The transmitter is suitable for measuring indoor environment, equipment, and HVAC temperature and humidity, and provides different range and output signal options. The housing is made of industrial plastic with an IP65 protection level. It can be selected with or without a digital display screen and can be connected to the output signal and power through back-wiring. The transmitter has functions such as differential pressure, air velocity, air volume, humidity, temperature, etc.

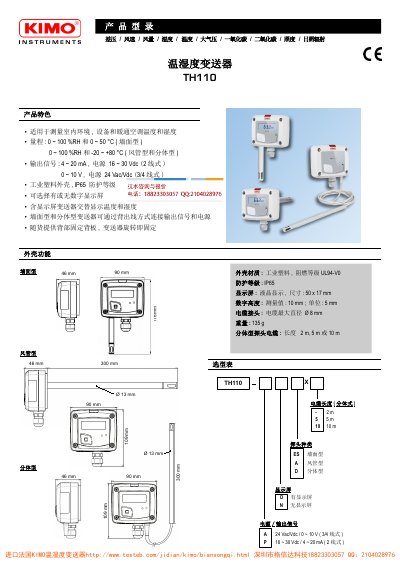

This document provides the user manual for the KIMO TH110 Temperature and Humidity Transmitter. It details the product specifications, including industrial plastic housing with IP65 protection and UL94-V0 fire rating. The device measures temperature and humidity in indoor environments, HVAC systems, and equipment, offering various models for wall mounting, duct mounting, and separate probe configurations. This manual is written in Chinese.
| Housing Material | Industrial plastic |
|---|---|
| Fire Rating | UL94-V0 |
| Protection Rating | IP65 |
| Display Type | LCD |
| Temperature Range (Wall type) | 0 ~ 50 °C |
| Temperature Range (Duct/Separate type) | -20 ~ +80 °C |
| Output Signal (2-wire) | 4 ~ 20 mA |
| Power Supply (2-wire) | 16 ~ 30 Vdc |
| Power Supply (3/4-wire) | 24 Vac/Vdc |
| Humidity Accuracy | ±1.7 %RH |
| Temperature Accuracy | ±0.2 °C |
| Humidity Sensor | Capacitive |
| Temperature Sensor | PT100 A class platinum resistor |
The 2-wire model requires a power supply of 16 ~ 30 Vdc.
The 3-wire or 4-wire model requires a power supply of 24 Vac or Vdc.
You set the unit by moving the right toggle switch (Switch 4) to the corresponding position for °C or °F.
Yes, the transmitter can be configured using the LCC-S software, but this software must be purchased separately.
