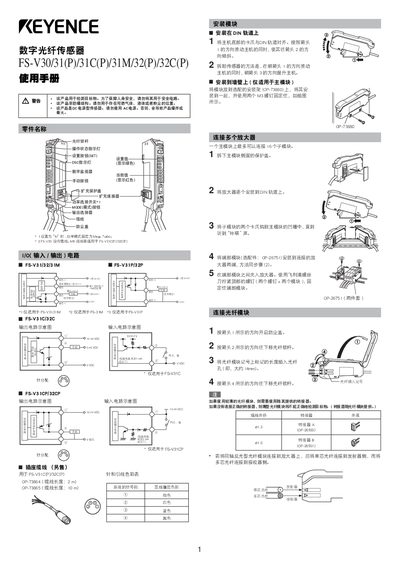

The KEYENCE FS-V30/31(P)/31C(P)/31M/32(P)/32C(P) digital fiber optic sensor user manual provides installation, wiring, configuration, calibration, and…
This manual explains how to install the FS series sensors on a DIN rail or wall‑mount, connect modules and cables, and secure the sensor for reliable operation. Detailed wiring diagrams show the connections for each sensor variant and the optional accessories.
It also covers setting sensitivity, performing two‑point and automatic calibrations, selecting power and detection modes, using external inputs, and configuring display options. Safety warnings, environmental limits, and troubleshooting guidance are included to ensure safe and accurate use. This manual is written in Chinese.
| Power supply voltage | 12‑24 VDC |
|---|---|
| Maximum output current | 100 mA |
| Response time (HIGH SPEED mode) | 33 µs |
| Input impedance (minimum) | 10 kΩ |
| Operating temperature (1‑2 modules) | -10 °C to +55 °C |
Align the sensor’s bottom claws with the DIN rail and push the sensor forward while tilting it as shown by the arrows, then lock it in place.
Press the SET button; the sensor will enter sensitivity‑setting mode and the value can be adjusted with the manual button.
The sensor is for target detection only, must not be used in safety circuits, is not explosion‑proof, and must not be powered with AC.
With no workpiece present, press SET, then place a workpiece and press SET again; the sensor stores the average of the two readings.
