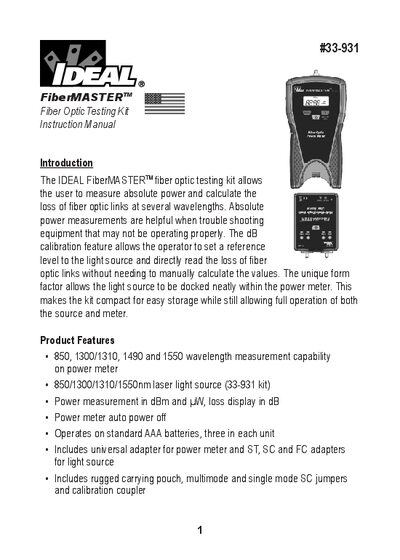

The IDEAL FiberMASTER 33-931 Fiber Optic Testing Kit User Manual explains operation, calibration, safety, and specifications for measuring optical power and…
The FiberMASTER 33-931 kit from IDEAL provides a power meter and laser light source for absolute power measurement and loss calculation across multiple wavelengths (850, 1300, 1310, 1490, 1550 nm). It includes universal adapters, SC/ST/FC jumpers, a calibration coupler, and a rugged carrying pouch for field use.
The manual covers safety warnings, two measurement modes (absolute power and relative loss), step‑by‑step calibration, operation of the power meter and light source, and detailed technical specifications. It also includes maintenance, warranty, and service information.
| Wavelengths (Power Meter) | 850, 1300, 1310, 1490, 1550 nm |
|---|---|
| Detector | InGaAs |
| Measurement Range | -60 to +3 dBm |
| Accuracy | ±5 % |
| Display Resolution | 0.01 |
| Connector (Power Meter) | Universal 2.5 mm with FC adapter |
| Power Supply (Power Meter) | 3 × AAA alkaline batteries |
| Operating Time (Power Meter) | 360 hours |
| Operating Temperature (Power Meter) | -10 °C to +60 °C |
| Storage Temperature (Power Meter) | -25 °C to +70 °C |
| Wavelengths (Light Source) | 850, 1300, 1310, 1550 nm (laser diode) |
| Output Power (Light Source) | -6 to -7 dBm |
| Stability (Light Source) | ±0.05 dB after 15 min, ±0.1 dB over 8 h |
| Connector (Light Source) | 2.5 mm with ST, SC, FC adapters |
| Power Supply (Light Source) | 3 × AAA alkaline batteries |
| Operating Time (Light Source) | 40 hours |
| Operating Temperature (Light Source) | -10 °C to +60 °C |
| Storage Temperature (Light Source) | -25 °C to +70 °C |
Connect the light source to the power meter with reference jumpers, press the ‘dB/Cal’ button to store the current power level (display shows 0.00 dB), then remove the coupler and measure the loss of the test cable.
The device operates in absolute power measurement mode (displaying dBm or µW) and relative power measurement mode (displaying loss in dB).
The power meter runs for approximately 360 hours on three AAA alkaline batteries.
