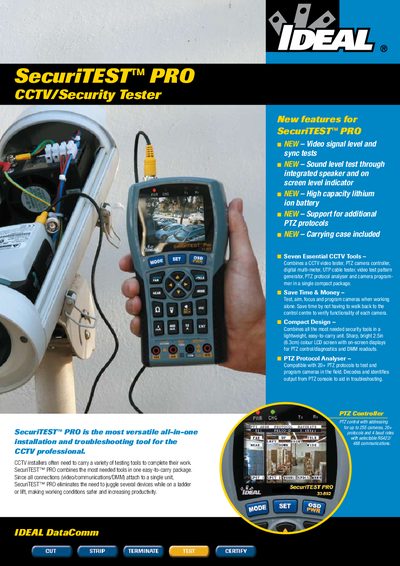

SecuriTEST™ PRO is a versatile all-in-one installation and troubleshooting tool for CCTV professionals. It combines the most needed tools in one easy-to-carry package, improving safety and productivity.
The SecuriTEST PRO combines the most needed CCTV testing tools into a lightweight handheld unit. It features a 2.5‑inch colour LCD, high‑capacity lithium‑ion battery, and a full‑function digital multimeter, allowing installers to test, aim, focus and program cameras without returning to a control centre.
The device supports 20+ PTZ protocols, provides video level and sync testing for NTSC/PAL, UTP cable fault detection, and includes a custom carrying case along with accessories such as a BNC video cable, test leads and a charger.
| Input Voltage | 12VDC +/- 10%, 1A |
|---|---|
| Video Signal Format | NTSC or PAL |
| Video Level (NTSC) | 30‑150 IRE |
| Video Level (PAL) | 200‑1200 mV |
| PTZ Baud Rates | 2400‑38400 bps |
| UTP Cable Test Detection | Straight/cross, open, short, miswired |
| Multimeter Voltage Range | 0‑400 V auto, 0.1 mV resolution |
| Battery Type | 1 × 3.7 V LiPo, 2000 mAh |
| Operating Time | 5.5 hours |
| Warranty | 1 Year |
It uses a 1 × 3.7 V lithium‑polymer (LiPo) rechargeable battery with a capacity of 2000 mAh.
The tester supports more than 20 PTZ protocols, including Pelco C, Pelco P, Panasonic, Samsung Techwin and others.
The device can operate for approximately 5.5 hours on a fully charged battery.
