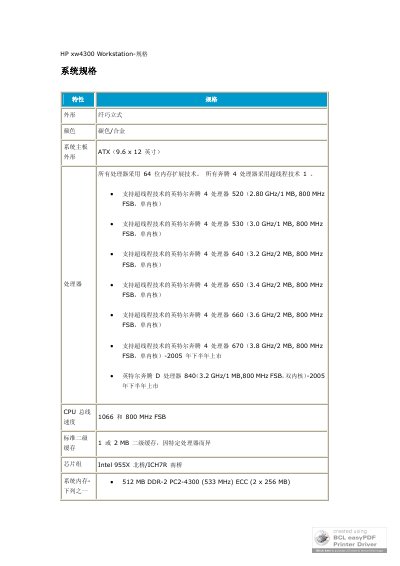

Technical specification sheet for the HP xw4300 workstation covering processor, memory, power, dimensions, and I/O details.
The HP xw4300 Workstation specification outlines the supported Intel Pentium 4 and Pentium D processors, various DDR‑2 memory configurations, and a 460 W auto‑adjusting power supply. Physical dimensions, weight, and environmental operating ranges are also detailed.
Additional sections describe audio capabilities with a Realtek ALC260 codec, networking via Broadcom NetXtreme gigabit Ethernet, storage options including SATA and Ultra320 SCSI, and graphics options such as NVIDIA Quadro FX series cards. This manual is written in Chinese.
| Supported Processors | Intel Pentium 4 660 (3.6 GHz, 2 MB L2, 800 MHz FSB) and Pentium D 840 (3.2 GHz, 1 MB L2, dual‑core) |
|---|---|
| Memory Configurations | Up to 4 GB DDR‑2 PC2‑5300 ECC (4 × 1 GB) or non‑ECC variants |
| Power Supply | 460 W continuous, auto‑adjusting |
| Chassis Dimensions | 45.0 × 16.8 × 45.6 cm (H × W × D) |
| System Weight | Typical configuration 15.88 kg (35 lb) |
| Operating Temperature | 5 °C to 35 °C (40 °F to 95 °F) |
| Audio Codec | Realtek ALC260 high‑precision integrated audio |
| Network Controller | Broadcom BCM5752 NetXtreme gigabit Ethernet (PCIe) |
It supports Intel Pentium 4 processors with hyper‑threading (e.g., 660 @ 3.6 GHz) and Intel Pentium D dual‑core processors (e.g., 840 @ 3.2 GHz).
The workstation can be equipped with DDR‑2 PC2‑5300 ECC modules up to 4 GB (4 × 1 GB) or non‑ECC modules ranging from 256 MB to 4 GB.
It uses a 460 W continuous, auto‑adjusting power supply.
The workstation operates between 5 °C and 35 °C (40 °F to 95 °F).
