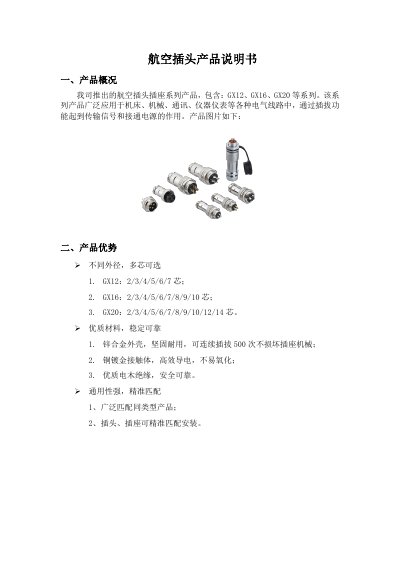

This manual provides an overview, advantages, selection guide, technical specifications, and model information for the GX12, GX16, and GX20 aviation…
The GX12, GX16 and GX20 series are aviation‑grade connectors used in machine tools, mechanical equipment, communications, and instrumentation. They provide reliable signal transmission and power connection through a plug‑and‑socket design.
Key advantages include multiple pin options, robust zinc‑alloy housings with nickel plating, gold‑plated copper contacts, and durable phenolic insulation. Technical data such as thread‑type mating, soldered wiring, 500 insertion cycles, and temperature range from -25 °C to +85 °C are listed, along with detailed model codes and dimensions. This manual is written in Chinese.
| Mating type | Threaded connection |
|---|---|
| Wiring method | Soldered |
| Insertion cycles | 500 times |
| Housing material | Zinc alloy (nickel plated) |
| Contact material | Copper plated with gold |
| Cable diameter (post‑wire) | GX12 ≤ φ5 mm; GX16 ≤ φ6.5 mm; GX20 ≤ φ9.5 mm |
| Operating temperature range | -25 °C to +85 °C |
| Compliance | ROHS 2.0 |
The connectors are rated for up to 500 insertions without damage.
The housing is made of zinc alloy with nickel plating, and the contacts are copper plated with gold.
The connectors operate from –25 °C to +85 °C.
