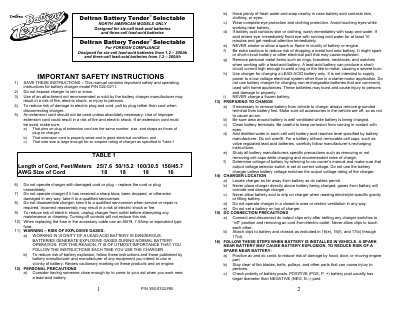

User manual for the Deltran Battery Tender model P/N 022-0211 with safety, operation and troubleshooting instructions.
This manual provides safety instructions, preparation steps, and detailed operating procedures for the Deltran Battery Tender charger (model P/N 022-0211). It covers proper handling of lead‑acid batteries, charger placement, connection guidelines, voltage selection, and LED status indicators.
Additional sections describe troubleshooting tips, FCC compliance information, and bilingual safety notices. The document is intended for end‑users and technicians who need to install, operate, and maintain the charger safely.
| Maximum cord length (25 ft / 7.6 m) | 25 ft / 7.6 m |
|---|---|
| AWG size for 25‑150 ft cords | 18 AWG (up to 100 ft), 16 AWG (150 ft) |
| Charging current | 1.25 A |
| Supported battery voltages | 6 V or 12 V lead‑acid batteries |
A flashing amber LED means the charger has AC power and the microprocessor is functioning, but the battery voltage is too low or the clips are not connected correctly.
Approximately 9½ hours are required to recharge a fully discharged 15 Ah battery to about 80 % capacity.
No. The voltage selector can only be changed before the charger is connected to the battery; once connected it must be changed by disconnecting the battery.
The battery may be defective or have an excessive current draw; the manual advises taking the battery to the dealer for testing.
