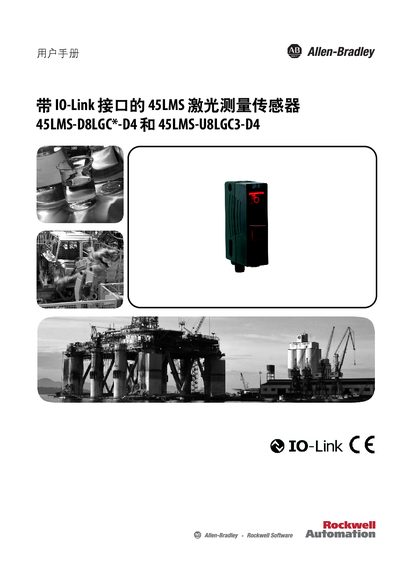

User manual for Rockwell Automation 45LMS laser measurement sensors with IO‑Link, covering installation, configuration, and troubleshooting.
This manual describes the 45LMS series laser measurement sensors, which provide long‑range distance detection (0.2 m to 50 m) using Class 1 or Class 2 visible red lasers. The sensors feature both a discrete NPN/PNP output and a 4‑20 mA analog output, and they are available with an IP65‑rated housing for harsh industrial environments.
The document includes safety information, product overview, installation steps, IO‑Link configuration, project creation in Studio 5000, and fault handling procedures. It also provides detailed technical parameters, wiring diagrams, and IODD registration guidance for integration with Rockwell Automation controllers. This manual is written in Chinese.
| Output types | 1 NPN/PNP discrete output, 4‑20 mA analog output |
|---|---|
| Power supply voltage | 10 V … 30 V DC (18 V … 30 V DC in IO‑Link mode) |
| Current consumption | ≤ 70 mA @ 24 V DC |
| Response time | 10 ms |
| IP rating | IP65 |
| Operating temperature | -30 °C … 50 °C |
The sensor uses the IO‑Link protocol, typically COM 2 at 38.4 kBaud.
The sensor housing is rated IP65.
