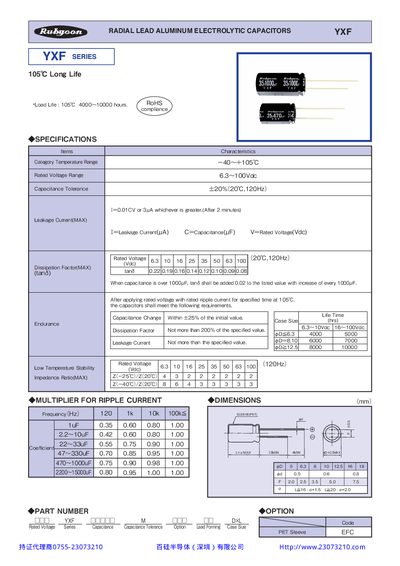

The GE YXF series radial lead aluminum electrolytic capacitors data sheet lists ratings, capacitance ranges, tolerances, leakage current, and temperature…
The YXF series from GE consists of radial lead aluminum electrolytic capacitors designed for long‑life operation up to 105 °C. The series offers a wide range of rated voltages from 6.3 V to 100 V DC and various capacitance values.
The datasheet provides detailed specifications, including temperature range, voltage range, capacitance tolerance, leakage current limits, dissipation factor, and impedance ratios, as well as part numbers and standard package dimensions.
| Temperature Range | -40 °C to +105 °C |
|---|---|
| Rated Voltage Range | 6.3 V to 100 V DC |
| Capacitance Tolerance | +20 % (20 °C, 1 kHz) |
| Leakage Current (MAX) | 0.01 CV or 3 µA, whichever is greater (after 2 min) |
| Impedance Ratio (MAX) | Z(-25°C)/Z(20°C) ≤ 4 |
The capacitors operate from –40 °C up to +105 °C.
The series is rated for voltages between 6.3 V and 100 V DC.
Capacitance tolerance is +20 % measured at 20 °C and 1 kHz.
Leakage current (MAX) is 0.01 CV or 3 µA, whichever is greater, measured after 2 minutes.
