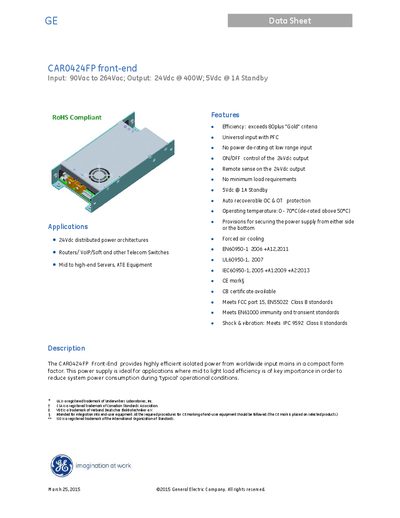

The GE CAR0424FP front-end power supply data sheet provides specifications, features, and environmental and compliance information.
The CAR0424FP front‑end power supply delivers isolated 24 VDC output up to 400 W from a universal 90‑264 VAC input. It is designed for telecom switches, servers, and other equipment where high efficiency and low standby power are important.
Key specifications include an input range of 90‑264 VAC, 24 VDC output at 400 W, 5 VDC standby at 1 A, efficiency exceeding 80 PLUS Gold criteria, and operation from 0 °C to 70 °C. The unit meets UL, CE, FCC, and IEC standards and includes protections such as over‑current, over‑temperature, and remote sense.
| Input Voltage Range | 90 Vac to 264 Vac |
|---|---|
| Output Voltage | 24 Vdc |
| Maximum Output Power | 400 W |
| Standby Output | 5 Vdc @ 1 A |
| Efficiency | exceeds 80plus “Gold” criteria |
| Operating Temperature | 0 °C to 70 °C |
| Safety Certification | UL60950-1, 2007 |
The unit accepts an input voltage from 90 Vac to 264 Vac.
It delivers 24 Vdc at up to 400 W of output power.
The supply exceeds the 80plus “Gold” efficiency criteria.
It is certified to UL60950-1, EN60950-1, CE mark, and FCC part 15 standards.
