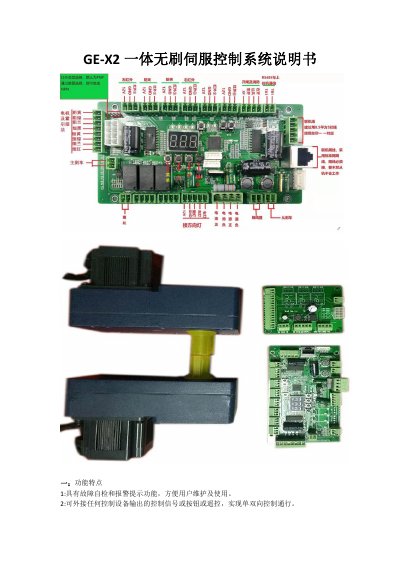

The GE X2 Integrated Brushless Servo Control System Manual details features, technical parameters, setup, and operation instructions.
The GE‑X2 is an integrated brushless servo control system for gate applications, offering fault self‑check, alarm prompts, bi‑directional control, automatic reset, and multiple safety functions such as anti‑reverse and multi‑level collision buffering. It uses a new industrial‑grade ARM controller with configurable digital settings, encryption, and reset capabilities.
The manual provides technical specifications—including temperature range, power supply, torque, and switching cycles—as well as detailed debugging and configuration procedures. Users can adjust opening speed, set delay times, configure CAN bus connections, and troubleshoot common errors through parameter settings described in the document. This manual is written in Chinese.
| Operating temperature range | -20 to +55 °C |
|---|---|
| Power supply | 24 VDC, 2 A |
| Opening angle | -95° / 0° / +95° |
| Maximum torque | 120 Nm |
| Maximum force (door edge) | 67 N |
| Pass frequency | 30 people/min |
| Maximum daily cycles | 2,000,000 |
| Maximum yearly switch cycles | 3,000,000 |
When power is cut, the arm automatically opens (fails‑safe), and when power is restored the system automatically resets to the closed position.
The opening speed is set with parameter D‑4; a value of 31 gives the fastest speed and 10 the slowest.
E‑1 (or E‑2) means the motor type is incorrect; set parameters L15 and L16 to 1 to select the correct motor.
