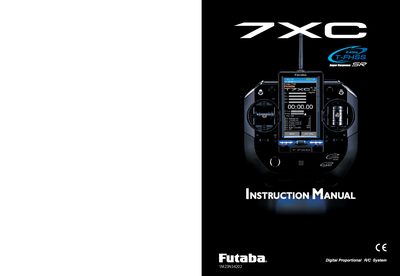

Futaba T7XC Instruction Manual

About this manual

This document is the instruction manual for the Futaba FASSTest-2.4GHz T7XC digital proportional radio control system. It provides comprehensive guidance on safety precautions, installation procedures, and initial set-up for both the transmitter and receiver components.

The manual details the operation of various functions including steering wheel and throttle trigger controls, digital trim operations, and stick adjustments. It also covers advanced features such as telemetry systems (battery voltage, RPM, temperature), mixing functions, and model management via microSD card.

What's inside

• For Your Safety
• Receiver Mode Precautions
• Installation
• Initial Set-Up
• Function Map
• Telemetry System
• Model Select
• Specifications

Frequently asked questions

What is this system designed for?

This system is designed only for use with radio control models.

Can I use a dry cell battery for the receiver?

No, you cannot use a dry cell battery because it does not match the required ratings.

Who is responsible for problems caused by unauthorized modifications?

Futaba is not responsible for issues arising from unauthorized modification, adjustment, or replacement of parts.
