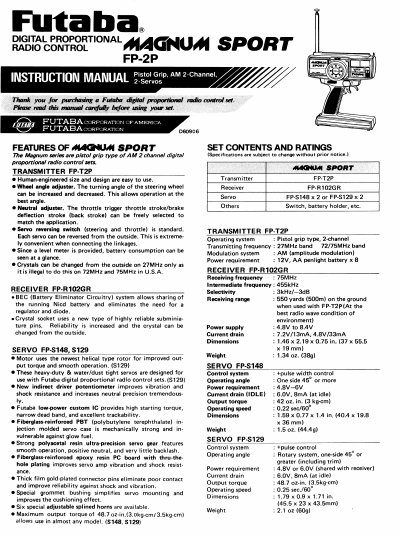

This manual covers the Futaba Magnum Sport series, a pistol grip type of 2-channel digital proportional radio control set operating in the 27MHz AM band. The set includes the FP-T2P transmitter, FP-R102GR receiver, and FP-S148 or FP-S129 servos. Key features include a human-engineered design, wheel angle adjuster, neutral adjuster, and external servo reversing switches.
| Transmitting frequency | 27MHz band |
|---|---|
| Modulation system | AM (amplitude modulation) |
| Operating angle (Servo S129) | ° |
Turn the throttle neutral adjuster with a coin to set the full deflection angle to 40°, 27°/13°, or 20°/20° depending on the application.
Turn the wheel angle adjuster; turning it in one direction increases the angle and turning it in the other direction decreases the angle.
Change the batteries when the level meter pointer drops to the boundary between the silver and red zones.
No, it is illegal to change the crystal on 72MHz and 75MHz sets in the U.S.A., but it is allowed on 27MHz sets.
