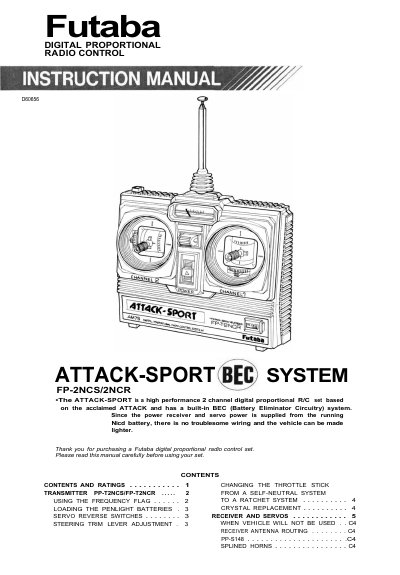

This is a manual for Futaba DIGITAL PROPORTIONAL RADIO CONTROL D60656 ATTACK-SPORT SYSTEM FP-2NCS/2NCR. The wireless remote control system is a high-performance 2-channel digital proportional R/C set with a built-in BEC system, which supplies power to the receiver and servo from the running Nicd battery, eliminating troublesome wiring and making the vehicle lighter.
The document provides instructions for setting up the Futaba FP-2NCS/2NCR digital proportional radio control system. It details features such as the built-in Battery Eliminator Circuitry (BEC), servo reverse switches, and trim adjustments. The guide explains how to load batteries, use frequency flags, and adjust steering and throttle controls.
| Operating Frequency | 27 MHz bands 1 to 6, 72/75 MHz |
|---|---|
| Modulation Type | AM (Amplitude Modulation) |
| Power Requirement | 12 0V. penlight battery x 8 |
| Current Drain (Receiver) | 8.4V/12mA, 4.8V/33mA |
| Output Torque (Servo) | 42 oz-in (3 kg cm) |
| Operating Speed (Servo) | 0.22 sec/60° |
The BEC (Battery Eliminator Circuitry) system allows the running Nicd battery to supply power to the receiver and servo, eliminating the need for troublesome wiring.
To change from a self-neutral system to a ratchet system, install an optional slider, remove the spring and swing arm, then twist with long-nose pliers.
