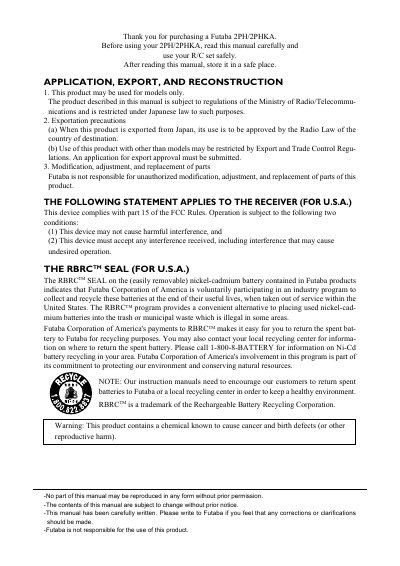

Futaba 2PH/2PHKA R/C System User Manual

About this manual

This manual covers the Futaba 2PH/2PHKA R/C set, including system contents, nomenclature, and assembly procedures. It details the connection of the receiver and servos, as well as digital proportional adjustments for steering and throttle.

What's inside

• System Contents
• Nomenclature / Handling
• Assembly / Adjustment
• Receiver And Servo Connection
• Digital Proportional Adjustment
• Steering Trim
• Throttle Trim
• Servo Reverse
• Steering EPA
• Throttle EPA

Frequently asked questions

What is the maximum distance for conducting a range test before operating the model?

You should operate from a distance of about 10 yards during the range test.

What is the required procedure for turning on and off the system to prevent loss of control?

Always turn the transmitter on first, then the receiver, and when turning off, turn the receiver off first then the transmitter.

What specific conditions must be avoided when storing the R/C system?

Do not store the system where it will be exposed to extreme heat or coldness, direct sunlight, high humidity, vibration, dust, steam, condensation, or engine exhaust.
