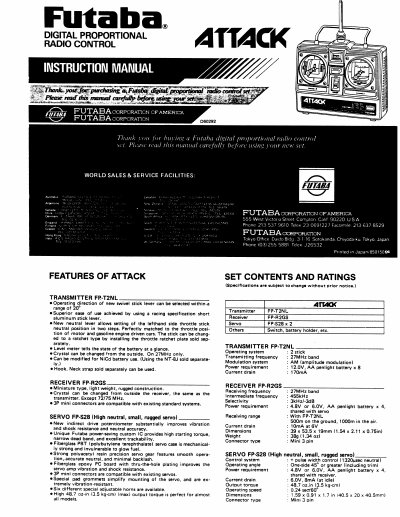

This manual provides instructions for the Futaba ATTACK digital proportional radio control set, which includes the FP-T2NL transmitter, FP-R2GS receiver, and FP-S28 servo. The set operates on the 27MHz band using AM modulation and is powered by AA penlight batteries.
| Operating direction of new swivel stick lever | selected within a range of 20° |
|---|---|
| Transmitting frequency | 27MHz band |
| Modulation system | AM (amplitude modulation) |
| Power requirement (Transmitter) | 12.0V, AA penlight battery x 3 |
| Receiving frequency | 27MHz band |
| Intermediate frequency | 465kHz |
| Selectivity | 3kHz/-3dB |
| Power requirement (Receiver) | 4.8V or G.OV, AA penlight battery x 4 |
| Receiving range | 500m on the ground, 1000m in the air |
| Output torque (Servo) | 48.7 oz-in (3.5 kg-cm) |
| Operating speed (Servo) | 0.24 sec/60° |
Yes, the operating direction can be selected within a range of 20°.
The receiving range is 500m on the ground and 1000m in the air.
Modify the set with the optional FBPK-10 (Attack nicad battery conversion set).
