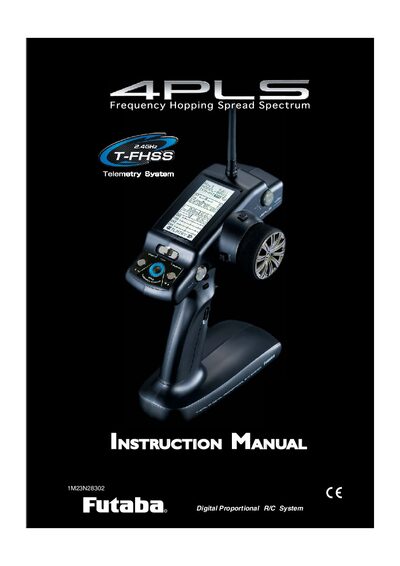

Futaba 4PLS-2.4GHz R/C System Instruction Manual

About this manual

This manual explains how to safely set up and operate the Futaba 4PLS-2.4GHz radio‑control system. It covers safety warnings, export regulations, battery handling, and the required installation procedures for both transmitter and receiver.

Detailed sections describe the transmitter’s functions, menu navigation, mixing options, fail‑safe settings, and troubleshooting tips. Reference tables list symbols, specifications, and optional parts, helping users configure the system for model cars, planes, or other hobby applications.

What's inside

• For Your Safety As Well As That Of Others
• Explanation of Symbols
• 2.4GHz System Precautions
• Receiver Mode Precautions
• Operation Precautions
• Ni‑MH/Ni‑Cd Battery Handling Precautions
• Installation
• Transmitter T4PLS Overview
• Battery Replacement Method
• Low Battery Alarm

Specifications

Frequently asked questions

What safety precautions should be taken before using the 4PLS system?

Do not operate outdoors on rainy days, run through puddles of water, or use the system when visibility is limited, and avoid using it near other radio‑control activity, people, roads, or power lines.

How should the transmitter battery be replaced or recharged?

Use only the specified HT5F1700B battery and the special charger provided; do not substitute commercial AA Ni‑Cd or Ni‑MH cells, and never use the transmitter battery in the receiver.

How do I check and set the fail‑safe function?

Turn on both transmitter and receiver power switches, wait one minute, then turn off the transmitter; the system automatically transfers fail‑safe data. Verify that the servos move to the preset position when reception fails.
